7075 Aircraft Aluminum Sheet Plate

What Is 7075 Aircraft Aluminum

7075 aircraft aluminum.jpgThe aircraft aluminum features large-scale, integration, light weight, thinner thickness, precision of cross-sectional dimensions and geometric tolerances, and uniformity. According to the different operating conditions and parts of the aircraft, the aerospace aluminum alloys are mainly divided into high-strength aluminum alloys, heat-resistant aluminum alloys and corrosion-resistant aluminum alloys.

High-strength aluminum alloys are mainly used for aircraft fuselage parts, engine compartments, seats, control systems, etc., and are the most widely used. 7075 aluminum plate belongs to the Al-Zn-Mg-Cu super hard aluminum.

7075 aluminum sheet is a cold-treated forging alloy with high strength and high hardness, far better than mild steel. This alloy has good mechanical properties and anode reaction. It is a typical aerospace aluminum alloy material. It belongs to the aviation series and is a relatively high-end product.

Specification of 7075 Aluminum Plate

Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Zr

Ti

Standard

7075

0.40

0.50

1.2-2.0

0.30

2.1-2.9

0.18-0.28

5.1-6.1

-

0.20

GB/AMS/EN

Size

Alloy

Type

Temper

Thickness(mm)

Width(mm)

7075

Thick plate

T651/T7651/T7351

4-260

1200-3800

Thin plate

T6

0.5-4.0

1000-2600

Mechanical Properties

Alloy

Temper

Direction

Thickness(mm)

Tensile strength(mm)

RM(Mpa)

Yield strength

RP0.2(Mpa)

Breaking elongation

A50%

Standard

7075

Thick

Plate

T651

LT

6-260

570-590

495-515

10-13.5

GB/T3380

T7651

LT

6-102

550-560

480-490

10.5-12.5

AMS4045K

T7351

LT

6-102

500-520

420-435

10-12.5

AMS4078

7075

Thin Plate

T6

-

0.5-3.5

550-570

480-500

11-15

GB/T3880

EN485

ASTM B209

7075 Aluminum Properties

  • With similar strength as steel due to its high levels of zinc, 7075 has excellent fatigue resistance. It can be machined easily, which made it a popular choice for military aircraft.

  • 7075-T6 is made up of 1.6% copper, 2.5% magnesium and 5.6% zinc. It is commonly used by aircraft manufacturers to strengthen the structure of the aircraft. It has poor weldability due to its copper content but it has great machinability. It is heat treatable.

  • After solution treatment, the plasticity is good, and the heat treatment strengthening effect is particularly good. It has high strength below 150℃, and has particularly good low temperature strength.

  • It has poor welding performance and has stress corrosion cracking tendency. Two-stage aging can improve the alloy's ability to resist stress corrosion cracking.

  • The plasticity in the annealed and just-quenched state is slightly lower than 2A12 in the same state, slightly better than 7A04. Its stress corrosion performance is better than 7A04.

  • 7075 T651 is known as the most excellent product among aluminum alloys. It has high strength and is far better than mild steel. It also has good mechanical properties and anode reaction, and is a typical aluminum alloy for aerospace and military industries.

Applications of 7075 Aluminum Sheet

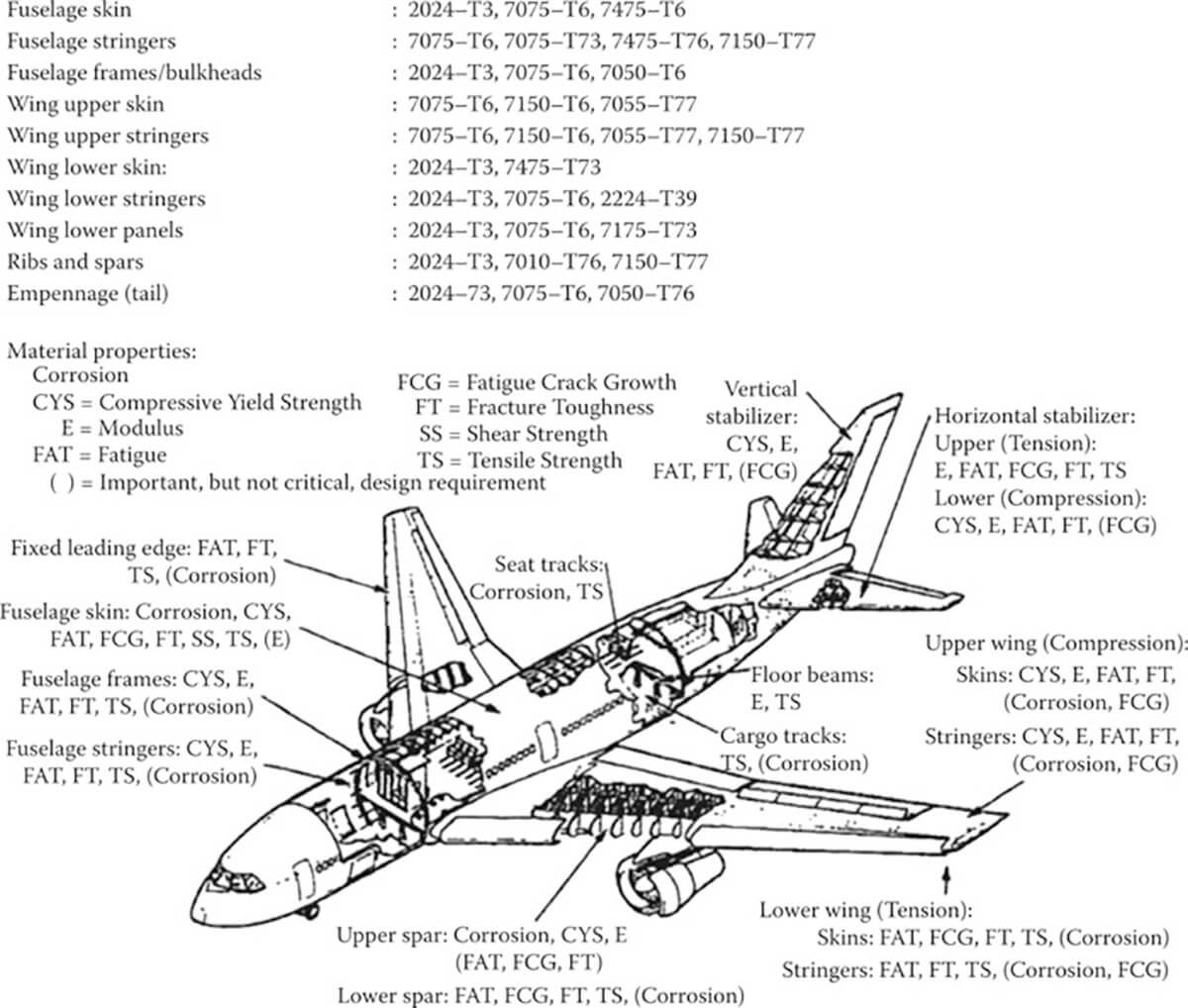

1. 7075 aluminum is mainly used in the windward parts of the entire aircraft, such as the upper outer panel of the wing, stringer, wing rib, empennage, the fixing of the fuselage bulkhead,etc.

2. It is also often used in gears and shafts, instrument shafts and turbines.

3. In industrial manufacturing, it is often used in high-standard occasions, and its advantages are self-evident. Not only the degree of precision is higher, but the service life is longer.

4. In terms of equipment materials: In many special fields, it has an irreplaceable advantage. For example, the ski poles and golf heads need to withstand the impact of external forces repeatedly, so aviation aluminum is more favored.

5. Rock climbing equipment and bicycle parts generally use 7075 aluminum alloy.

aircraft aluminum sheets for airplance.jpg

The Advantages of Haomei 7075 Aluminum Plate

1. After the stress is eliminated, it will not be deformed or warped after processing. All 7075 aluminum plates are all ultrasonically detected, which can ensure that there are no blisters and impurities. The 7075 aluminum plate has high thermal conductivity, which can shorten the molding time and improve work efficiency.

2. It has good physical properties, the workability and corrosion resistance. The use of age hardening can improve the strength.

3. Even if it is natural aging, 7xxx alloy can reach quite high strength and low sensitivity to cracks.

4. After being solid solution strengthened, the strength of the welded part can be restored, thereby increasing the strength of the welded seam.

With mature processing technologies, we can offer the customers best 7075 aluminum price.

Why Choose Haomei Aluminum

Haomei Aluminum mainly has melting and casting production line and rolling line. The melting and casting line includes 10 sets of melting and casting production lines and their supporting uniform annealing furnace, machining equipment, Alscan hydrogen meter, slag meter and other online detection equipment. The produced alloys have 2024, 2014, 2219, 2524, 2618, 3104, 5182, 5083, 6061, 7075, 7175, 7050, 7055,etc.

The rolling line has 4300mm rolling mill, 12000 tons stretcher, roller bottom spray quenching furnace, high precision aging furnace, water immersion inspection and other complete sets of equipment. We also have 2800mm hot rolling mill/cold rolling mill, air cushion heat treatment furnace, desktop annealing furnace, as well as large specification precision finishing unit.

The maximum width of aluminum sheet produced by Haomei Aluminum is 3,800 mm, the maximum length is 20,000 mm, the range of thickness is 0.2-8 mm. The maximum width of aluminum plate is 4,000 mm, the maximum length is 30,000 mm, the range of thickness is 8-250 mm.
